CLASS TYPE 33

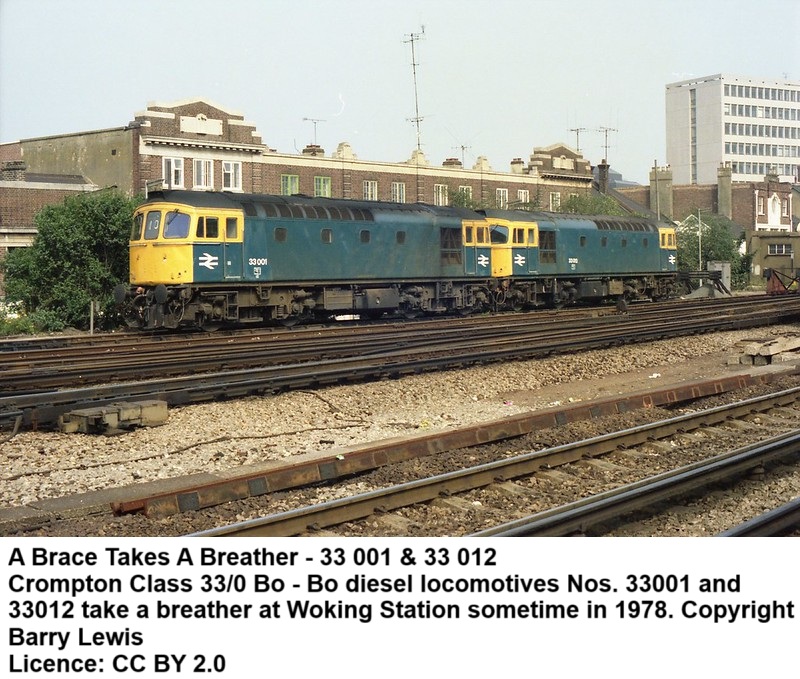

An example of Diesel Class 33

ORIGINAL SPECIFICATION CLASS 33

POWER TYPE	Diesel Electric
BUILDER	Birmingham Railway Carriage & Wagon Co., Smethwick
WHEEL ARRANGEMENT	Bo-Bo
WHEELBASE	39 ft
DIMENSIONS	L. -50ft 9in W. - 9ft 3in H.-12ft 8in
WEIGHT	77 tonnes
WHEEL DIAMETER	3ft 7in
ENGINE	Sulzer 8LDA28A
TRACTIVE EFFORT	45,000lbs
TRAIN BRAKES	Dual (Air & Vacuum)
BRAKE FORCE	35 tonnes
FUEL CAPACITY	750 gals
POWER OUTPUT	1550hp
MAX SPEED	85mph
BUILT/ WITHDRAWN	1960/62 - 1964/2007
No. BUILT	98

SUB CLASSES

33/0	Original Specifications as above
33/1	Built 1965-66, with Push Pull control
33/2	Built 1962 ,Narrower width of 8ft 8inch

RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

LOCOMOTIVES IN CLASS

REGION
OR CLASS REGION
No. 1948 No. 1957 No. TOPS No. RENUMBER STATUS LOCO FACTS

33/0 D6500 33001 Scrapped D6500 - 33001

33/0 D6501 33002 Preservation D6501 - 33002

33/0 D6502 Scrapped D6502

33/0 D6503 33003 Scrapped D6503 - 33003

33/0 D6504 33004 Scrapped D6504 - 33004

33/0 D6505 33001 Scrapped D6505 - 33005

33/0 D6506 33006 Scrapped D6506 - 33006

33/0 D6507 33007 Scrapped D6507 - 33007

33/0 D6508 33008 Preservation D6508 - 33008

33/0 D6509 33009 Scrapped D6509 - 33009

33/0 D6510 33010 Scrapped D6510 - 33010

33/1 D6511 33101 Scrapped D6511 - 33101

33/0 D6512 33011 Scrapped D6512 - 33011

33/1 D6513 33102 Preservation D6513 - 33102

33/1 D6514 33103 Preservation D6514 - 33103

33/0 D6515 33012 Preservation D6515 - 33012

33/1 D6516 33104 Scrapped D6516 - 33104

33/1 D6517 33105 Scrapped D6517 - 33105

33/0 D6518 33013 Scrapped D6518 - 33013

33/1 D6519 33106 Scrapped D6519 - 33106

33/1 D6520 33107 Scrapped D6520 - 33107

33/1 D6521 33108 Preservation D6521 - 33108

33/0 D6522 33014 Scrapped D6522 - 33014

33/0 D6523 33015 Scrapped D6523 - 33015

33/0 D6524 33016 Scrapped D6524 - 33016

33/1 D6525 33109 Preservation D65275 - 33109

33/0 D6526 33017 Scrapped D6526 - 33017

33/1 D6527 33110 Preservation D6527 - 33110

33/1 D6528 33111 Preservation D6528 - 33111

33/1 D6529 33112 Scrapped D6529 - 33112

33/0 D6530 33018 Preservation D6530 - 33018

33/1 D6531 33113 Scrapped D6531 - 33113

33/1 D6532 33114 Scrapped D65352 - 33114

33/1 D6533 33115 Scrapped D6533 - 331165

33/0 D6534 33019 Preservation D6534 - 33019

33/1 D6535 33116 Preservation D6535 - 33116

33/1 D6536 33117 Preservation D6536 - 33117

33/0 D6537 33020 Scrapped D6537 - 33020

33/1 D6538 33118 Scrapped D6538 - 33118

33/0 D6539 33021 Preservation D6539 - 33021

33/0 D6540 33022 Scrapped D6540 - 33022

33/0 D6541 33023 Scrapped D6541 - 33023

33/0 D6542 33024 Scrapped D6542 - 33024

33/0 D6543 33025 Preservation D6543 - 33025

33/0 D6544 33026 Scrapped D6544 - 33026

33/0 D6545 33027 Scrapped D6545 - 33027

33/0 D6546 33028 Scrapped D6546 - 33028

33/0 D6547 33029 Preservation D6547 - 33029

33/0 D6548 33030 Preservation D6548 - 33030

33/0 D6549 33031 Scrapped D6549 - 33031

33/0 D6550 33032 Scrapped D6550 - 33032

33/0 D6551 33033 Scrapped D6551 - 33033

33/0 D6552 33034 Scrapped D6552 - 33034

33/0 D6553 33035 Preservation D6553 - 33035

33/0 D6554 33036 Scrapped D6554 - 33036

33/0 D6555 33037 Scrapped D6555 - 33037

33/0 D6556 33038 Scrapped D6556 - 33038

33/0 D6557 33039 Scrapped D6557 - 33039

33/0 D6558 33040 Scrapped D6558 - 33040

33/0 D6559 33041 Scrapped D6559 - 33041

33/0 D6560 33042 Scrapped D6560 - 33042

33/0 D6561 33043 Scrapped D6561 - 33043

33/0 D6562 33044 Scrapped D6562 - 33044

33/0 D6563 33045 Scrapped D6563 - 33045

33/0 D6564 33046 Scrapped D6564 - 33046

33/0 D6565 33047 Scrapped D6565 - 33047

33/0 D6566 33048 Preservation D6566 - 33048

33/0 D6567 33049 Scrapped D6567 - 33049

33/0 D6568 33050 Scrapped D6568 - 33050

33/0 D6569 33051 Scrapped D6569 - 33051

33/0 D6570 33052 Preservation D6570 - 33052

33/0 D6571 33053 Preservation D6571 - 33053

33/0 D6572 33054 Scrapped D6572 - 33054

33/0 D6573 33055 Scrapped D6573 - 33055

33/0 D6574 33056 Scrapped D6574 - 33056

33/0 D6575 33057 Preservation D6575 - 33057

33/0 D6576 Scrapped D6576

33/0 D6577 33058 Scrapped D6577 - 33058

33/0 D6579 33060 Scrapped D6579 - 33060

33/1 D6580 33119 Scrapped D6580 - 33119

33/0 D6581 33061 Scrapped D6581 - 33061

33/0 D6582 33062 Scrapped D6582 - 33062

33/0 D6583 33063 Preservation D6583 - 33063

33/0 D6584 33064 Scrapped D6584 - 33064

33/0 D6585 33065 Preservation D6585 - 33065

33/2 D6586 33201 Preservation D6586 - 33201

33/2 D6587 33202 Preservation D6587 - 33202

33/2 D6588 33203 Scrapped D6588 - 33203

33/2 D6589 33204 Scrapped D6589 - 33204

33/2 D6590 33302
33205 Scrapped D6590 - 33205

33/2 D6591 33206 Scrapped D6591 - 33206

33/2 D6592 33207 Preservation D6592 - 33207

33/2 D6593 33208 Preservation D6593 - 33208

33/2 D6594 33209 Scrapped D6594 - 33209

33/2 D6595 33210 Scrapped D6595 - 33210

33/2 D6596 33211 Scrapped D6596 - 33211

33/2 D6597 33212 Scrapped D6597 - 33212

REGION OR CLASS	1957 No.	TOPS No.	STATUS	LOCO FACTS
33/0	D6500	33001	Scrapped	D6500 - 33001
33/0	D6501	33002	Preservation	D6501 - 33002
33/0	D6502		Scrapped	D6502
33/0	D6503	33003	Scrapped	D6503 - 33003
33/0	D6504	33004	Scrapped	D6504 - 33004
33/0	D6505	33001	Scrapped	D6505 - 33005
33/0	D6506	33006	Scrapped	D6506 - 33006
33/0	D6507	33007	Scrapped	D6507 - 33007
33/0	D6508	33008	Preservation	D6508 - 33008
33/0	D6509	33009	Scrapped	D6509 - 33009
33/0	D6510	33010	Scrapped	D6510 - 33010
33/1	D6511	33101	Scrapped	D6511 - 33101
33/0	D6512	33011	Scrapped	D6512 - 33011
33/1	D6513	33102	Preservation	D6513 - 33102
33/1	D6514	33103	Preservation	D6514 - 33103
33/0	D6515	33012	Preservation	D6515 - 33012
33/1	D6516	33104	Scrapped	D6516 - 33104
33/1	D6517	33105	Scrapped	D6517 - 33105
33/0	D6518	33013	Scrapped	D6518 - 33013
33/1	D6519	33106	Scrapped	D6519 - 33106
33/1	D6520	33107	Scrapped	D6520 - 33107
33/1	D6521	33108	Preservation	D6521 - 33108
33/0	D6522	33014	Scrapped	D6522 - 33014
33/0	D6523	33015	Scrapped	D6523 - 33015
33/0	D6524	33016	Scrapped	D6524 - 33016
33/1	D6525	33109	Preservation	D65275 - 33109
33/0	D6526	33017	Scrapped	D6526 - 33017
33/1	D6527	33110	Preservation	D6527 - 33110
33/1	D6528	33111	Preservation	D6528 - 33111
33/1	D6529	33112	Scrapped	D6529 - 33112
33/0	D6530	33018	Preservation	D6530 - 33018
33/1	D6531	33113	Scrapped	D6531 - 33113
33/1	D6532	33114	Scrapped	D65352 - 33114
33/1	D6533	33115	Scrapped	D6533 - 331165
33/0	D6534	33019	Preservation	D6534 - 33019
33/1	D6535	33116	Preservation	D6535 - 33116
33/1	D6536	33117	Preservation	D6536 - 33117
33/0	D6537	33020	Scrapped	D6537 - 33020
33/1	D6538	33118	Scrapped	D6538 - 33118
33/0	D6539	33021	Preservation	D6539 - 33021
33/0	D6540	33022	Scrapped	D6540 - 33022
33/0	D6541	33023	Scrapped	D6541 - 33023
33/0	D6542	33024	Scrapped	D6542 - 33024
33/0	D6543	33025	Preservation	D6543 - 33025
33/0	D6544	33026	Scrapped	D6544 - 33026
33/0	D6545	33027	Scrapped	D6545 - 33027
33/0	D6546	33028	Scrapped	D6546 - 33028
33/0	D6547	33029	Preservation	D6547 - 33029
33/0	D6548	33030	Preservation	D6548 - 33030
33/0	D6549	33031	Scrapped	D6549 - 33031
33/0	D6550	33032	Scrapped	D6550 - 33032
33/0	D6551	33033	Scrapped	D6551 - 33033
33/0	D6552	33034	Scrapped	D6552 - 33034
33/0	D6553	33035	Preservation	D6553 - 33035
33/0	D6554	33036	Scrapped	D6554 - 33036
33/0	D6555	33037	Scrapped	D6555 - 33037
33/0	D6556	33038	Scrapped	D6556 - 33038
33/0	D6557	33039	Scrapped	D6557 - 33039
33/0	D6558	33040	Scrapped	D6558 - 33040
33/0	D6559	33041	Scrapped	D6559 - 33041
33/0	D6560	33042	Scrapped	D6560 - 33042
33/0	D6561	33043	Scrapped	D6561 - 33043
33/0	D6562	33044	Scrapped	D6562 - 33044
33/0	D6563	33045	Scrapped	D6563 - 33045
33/0	D6564	33046	Scrapped	D6564 - 33046
33/0	D6565	33047	Scrapped	D6565 - 33047
33/0	D6566	33048	Preservation	D6566 - 33048
33/0	D6567	33049	Scrapped	D6567 - 33049
33/0	D6568	33050	Scrapped	D6568 - 33050
33/0	D6569	33051	Scrapped	D6569 - 33051
33/0	D6570	33052	Preservation	D6570 - 33052
33/0	D6571	33053	Preservation	D6571 - 33053
33/0	D6572	33054	Scrapped	D6572 - 33054
33/0	D6573	33055	Scrapped	D6573 - 33055
33/0	D6574	33056	Scrapped	D6574 - 33056
33/0	D6575	33057	Preservation	D6575 - 33057
33/0	D6576		Scrapped	D6576
33/0	D6577	33058	Scrapped	D6577 - 33058
33/0	D6579	33060	Scrapped	D6579 - 33060
33/1	D6580	33119	Scrapped	D6580 - 33119
33/0	D6581	33061	Scrapped	D6581 - 33061
33/0	D6582	33062	Scrapped	D6582 - 33062
33/0	D6583	33063	Preservation	D6583 - 33063
33/0	D6584	33064	Scrapped	D6584 - 33064
33/0	D6585	33065	Preservation	D6585 - 33065
33/2	D6586	33201	Preservation	D6586 - 33201
33/2	D6587	33202	Preservation	D6587 - 33202
33/2	D6588	33203	Scrapped	D6588 - 33203
33/2	D6589	33204	Scrapped	D6589 - 33204
33/2	D6590	33302 33205	Scrapped	D6590 - 33205
33/2	D6591	33206	Scrapped	D6591 - 33206
33/2	D6592	33207	Preservation	D6592 - 33207
33/2	D6593	33208	Preservation	D6593 - 33208
33/2	D6594	33209	Scrapped	D6594 - 33209
33/2	D6595	33210	Scrapped	D6595 - 33210
33/2	D6596	33211	Scrapped	D6596 - 33211
33/2	D6597	33212	Scrapped	D6597 - 33212
